Vehicle Wireless Charger Circuits Board

Vehicle Wireless Charger Circuits Board

Vehicle Wireless Charger PCB Assembly

Vehicle Wireless Charger Manufacturer
Vehicle Wireless Charger Circuits Board

Multilayer PCB for Vehicle Wireless Charger

Material: FR4 TG170, 1.6mm, 1 OZ for all layer
Minimum track: 6 mil
Minimum space(gap): 8 mil
Minimum hole: 0.20mm
Surface finished: LF HASL
Panel size: 128*140mm/6up

Type C assembly, wire soldering PCB assembly

Input: 5V 2A, 9V 2A, 12V 1.5A

Output: 5W, 7.5W, 10W, 15W

QUICK QUOTE

Type C assembly, wire soldering PCB assembly

Double sided SMT. Through hole assembly

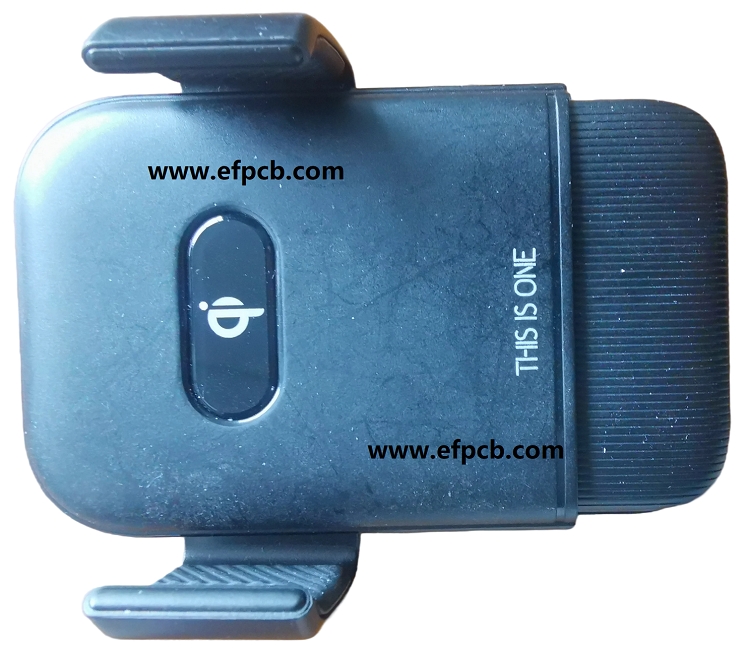

Vehicle Wireless Charger

Electromagnetic induction vehicle mounted wireless charger for automatic induction of mobile phone.  To reduce misoperation, stop and automatically open and close 10 times. The operation is simple. During driving, it is convenient to place the mobile phone and charge quickly, so as not to distract the driver.

Apply to Samsung, Apple, Huawei, Xiaomi mobile phones power charging.
